NA2XSH 6/10 (12)kV Cable
Voltage:	6/10 (12)kV
Structure:	Conductor	Class 2 stranded Aluminium
	Insulation	XLPE (Cross-linked Polyethylene)
	Metallic Screen	Copper Wires and Tape
	Jacket	LSZH (Low Smoke Zero Halogen)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

UV resistant Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. LSZH outer sheath allows internal and external installation including directly in ground and in cable ducts.

STANDARDS

IEC 60502-2,

Flame Retardant according to IEC/EN 60332-1-2

Low Smoke Zero Halogen according to IEC/EN 61034-1/2,

IEC/EN 60754-1/2

CHARACTERISTICS

Voltage Rating Uo/U

6/10 (12)kV

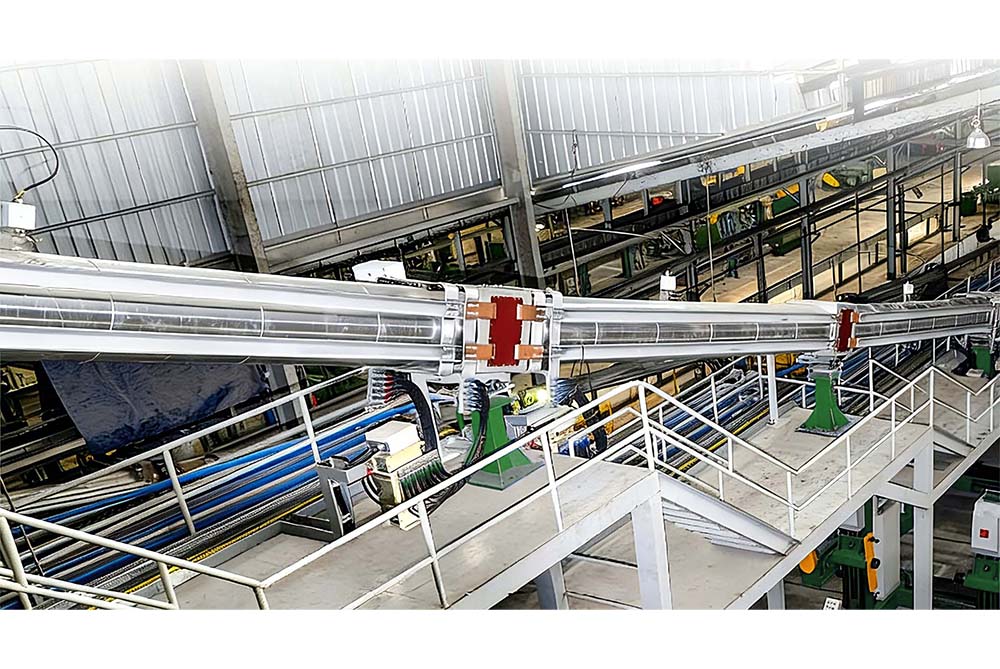

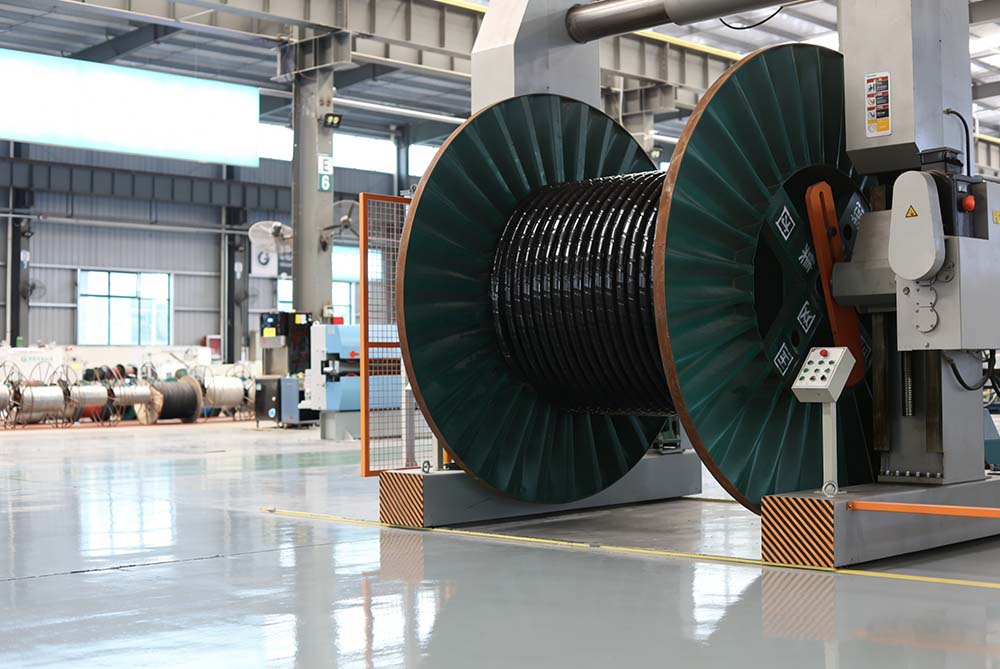

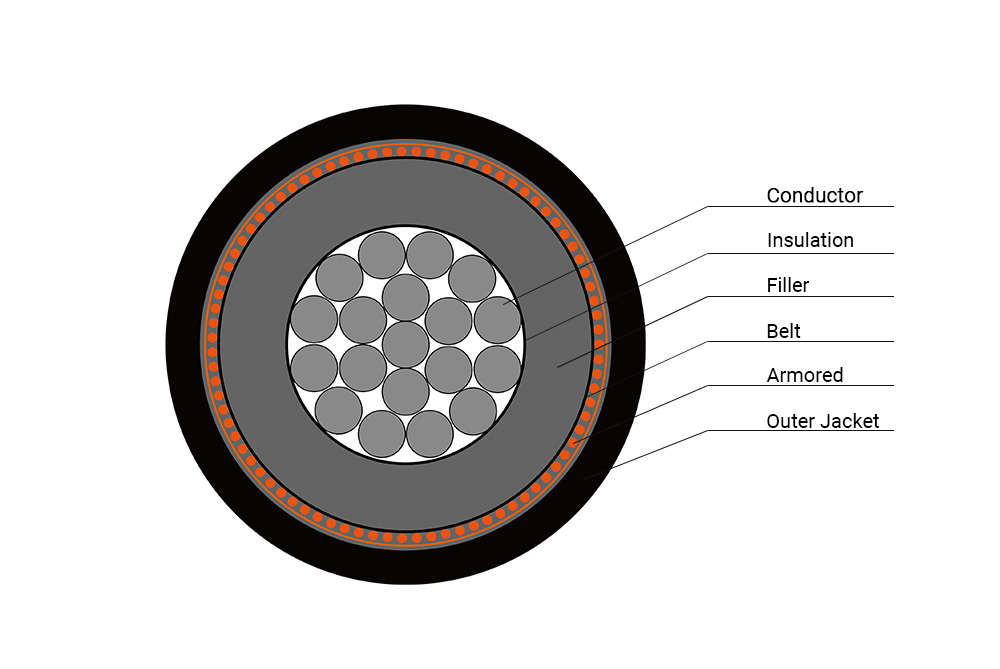

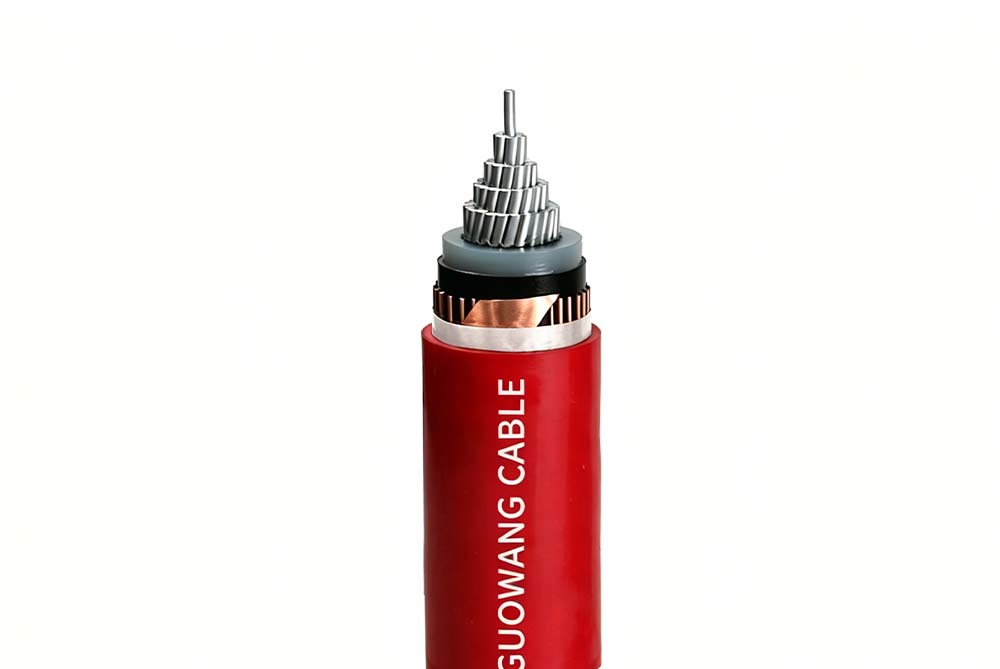

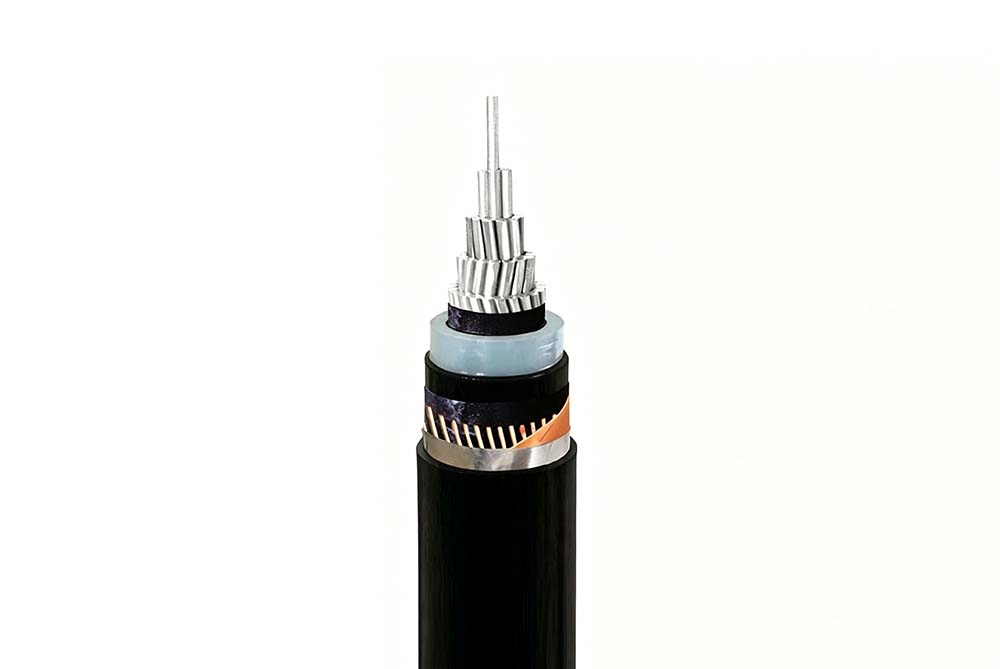

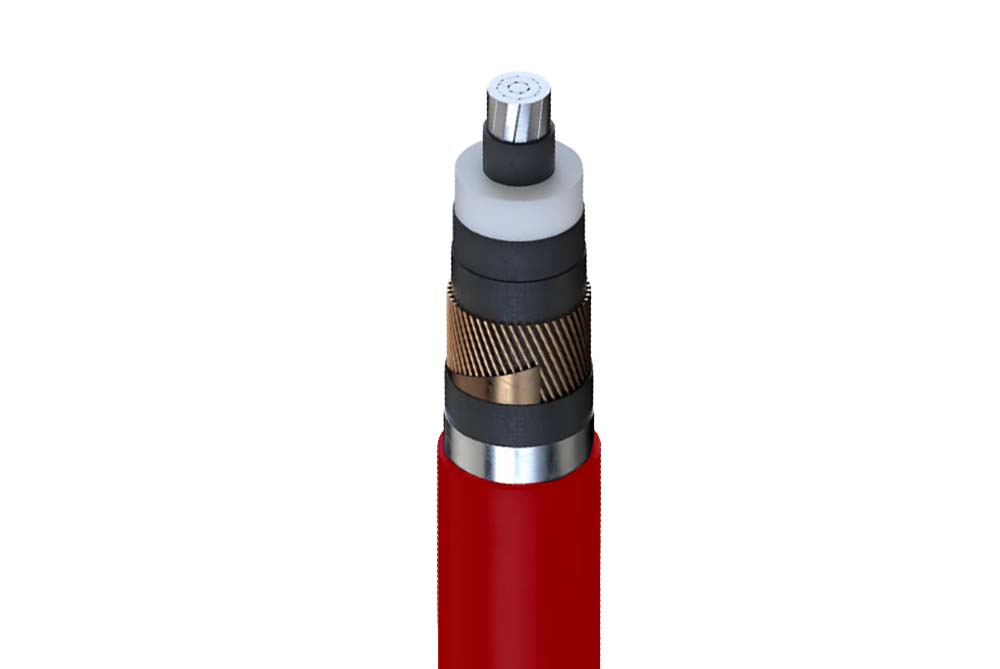

CONSTRUCTION

Conductor

Class 2 stranded Aluminium

Conductor Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Insulation

XLPE (Cross-linked Polyethylene)

Insulation Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Longitudinal Waterblock

Semi-conductive water swelling tape

Metallic Screen

Copper Wires and Tape

Longitudinal Waterblock

Non-conductive water swelling tape

Sheath

LSZH (Low Smoke Zero Halogen)

Sheath Colour

Black

NO. OF CORE	NOMINAL CROSS SECTIONAL AREA		NOMINAL Conductor DIAMETER	NUMBER WIRES CONDUCTOR	NOMINAL SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS	MINIMUM INSULATION THICKNESS	NOMINAL DIAMETER OVER INSULATIOIN
NO. OF CORE	Conductor	Screen	mm	mm	INNER mm	OUTER mm	mm	mm	mm
1	50	16	8.20	7*2.90	0.50	0.40	3.40	2.96	16.4
1	70	16	9.70	19*2.18	0.50	0.40	3.40	2.96	17.9
1	95	16	11.4	19*2.55	0.50	0.40	3.40	2.96	19.6
1	120	16	12.65	19*2.90	0.50	0.40	3.40	2.96	20.9
1	150	25	14.4	19*3.16	0.50	0.40	3.40	2.96	22.6
1	185	25	15.75	37*2.55	0.50	0.40	3.40	2.96	24.4
1	240	25	18.2	37*2.90	0.50	0.40	3.40	2.96	26.9
1	300	25	20.5	61*2.55	0.50	0.40	3.40	2.96	29.2
1	400	35	23.0	61*2.90	0.50	0.40	3.40	2.96	31.7
1	500	35	26.0	61*3.20	0.50	0.40	3.40	2.96	34.7
1	630	35	30.2	61*3.65	0.50	0.40	3.40	2.96	38.9

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
